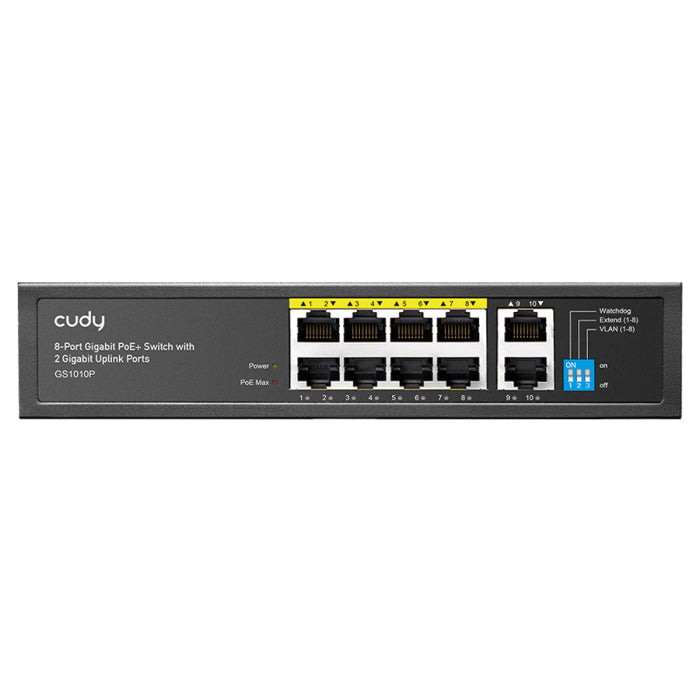

Cudy 10 Port Gigabit 8 PoE 100W PoE Switch | GS1010P

Cudy's CD-GS1010P is a 10-Port Gigabit switch with 8x 802.3af/at PoE ports and 2x Gigabit Uplink ports. The switch offers a 100W PoE budge with up to 30W per port. Both VLAN and Extender modes are supported with the integrated toggle switch. VLAN mode enables port isolation on ports 1-8 while Extender mode increases the transmission distance on ports 7-8 to 250m at 10Mbps. The watchdog function continuously monitors PoE connections when in VLAN or Extender Mode. If an error is detected on the device, the switch immediately restarts the port. The unit features a PoE Max LED that blinks at 90% usage and stays solid at 95%.

Perfect to power 6 G5 Pro POE cameras!

More Information

SKU	CD-GS1010P
Manufacturer	Cudy
Manufacturer Product Code	GS1010P
Download	Datasheet Download  Type Approval Exemption
Specifications	Ethernet Ports: 10x 10/100/1000 Hardware Button: VLAN ; Extender ; Default Max. Power Consumption: 20W Mounting: Desktop Operating System: None Operating Temperature: 0°C to 40°C PoE Input: None PoE Output: 802.3af/at PoE on Ports 1~8 Power Input: 1x IEC Power Cord (Included) Serial Interface: None SFP Ports: None Supported Voltage Range: 100-240V Dimensions: 220 x 150 x 44 mm Weight: 1kg
