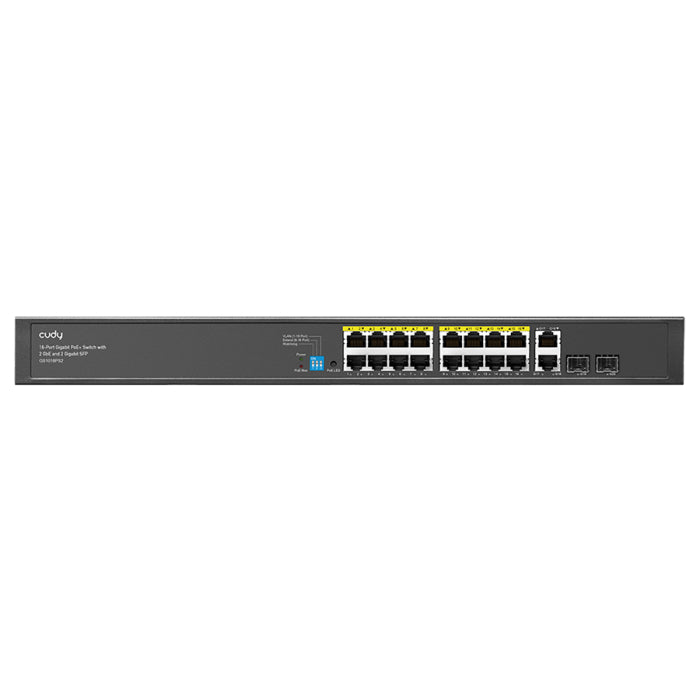

Cudy 16 Port Gigabit PoE 180W 2 Gigabit 2SFP Switch | GS1018PS2

Cudy's CD-GS1018PS is a 16 Port Gigabit switch with 16x 802.3af/at PoE ports, 2x Gigabit and 2x SFP Uplink ports. The switch offers a 180W PoE budget and up to 30W per PoE port. Extender Mode increases the transmission distance on ports 9-16 to 250m at 10Mbps. The Watchdog function continuously monitors PoE connections when in Extender Mode. If an error is detected on the device, the switch immediately restarts the port. The unit features a PoE Max LED that blinks at 90% usage and stays solid at 95%. A PoE LED button lights per-port LEDs to indicate active power delivery.

Perfect for up to 11 G5 Pro POE cameras!

SKU	CD-GS1018PS
Manufacturer	Cudy
Manufacturer Product Code	GS1018PS2
Download	Datasheet Download  Type Approval Exemption

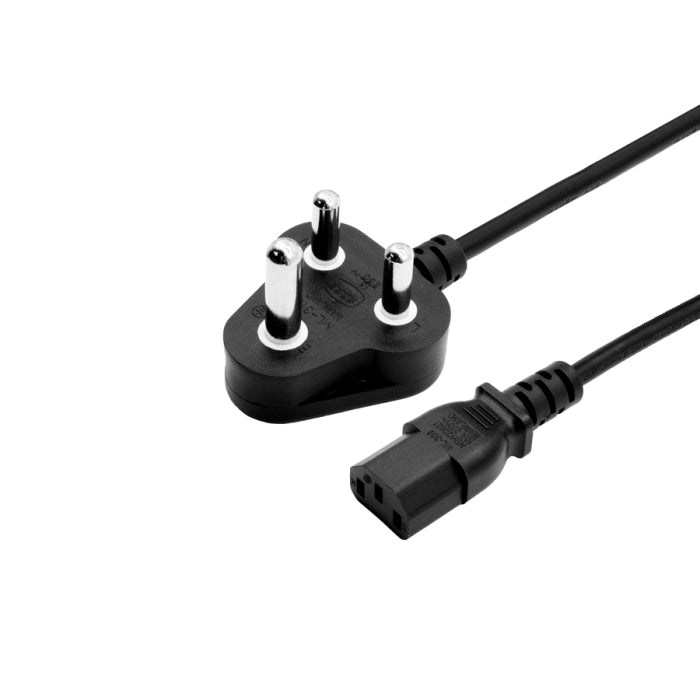

Specifications	Ethernet Ports: 18x 10/100/1000 Hardware Button: Extender ; Default Max. Power Consumption: 10W Mounting: Rack-Mount Operating System: None Operating Temperature: -10~50°C PoE Input: None PoE Output: 802.3af/at PoE on Ports 1~16 Power Input: 1x IEC Power Cord (Included) Serial Interface: None SFP Ports: 2x 1.25Gbps Supported Voltage Range: 100-240V Dimensions: 320 x 207 x 44 mm Weight: 2.28kg
