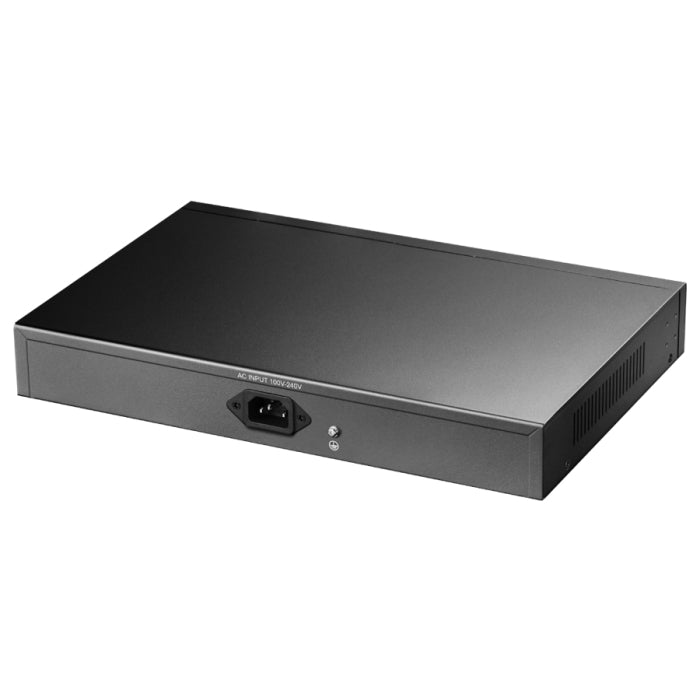

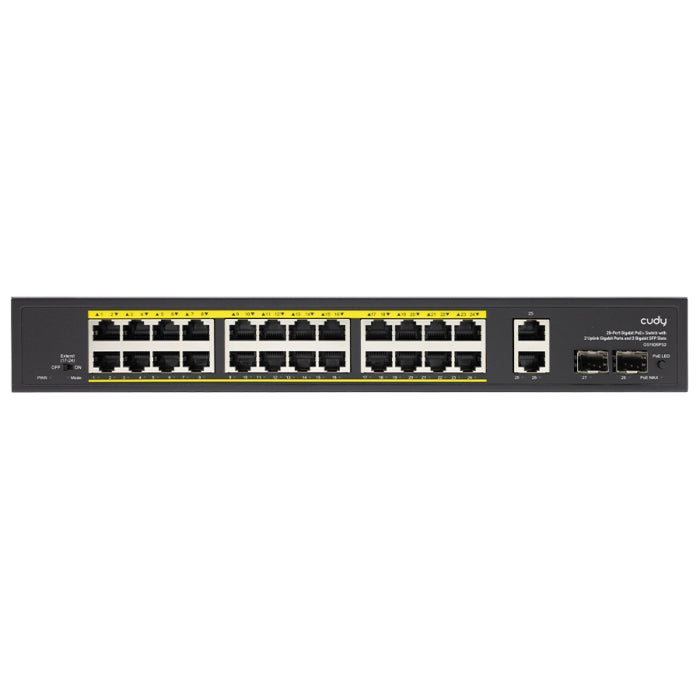

Cudy 24 Port Gigabit PoE 280W 2 Gigabit 2SFP Switch | GS1026PS2

Cudy's CD-GS1026PS is a 24 Port Gigabit switch with 24x 802.3af/at PoE ports, 2x Gigabit and 2x SFP Uplink ports. The switch offers a 280W PoE budget and up to 30W per PoE port. In Extended Mode, the transmission range on ports 17-24 is extended to 250 meters at 10Mbps. The Watchdog function continuously monitors PoE connections when in Extender Mode. If an error is detected on the device, the switch immediately restarts the port. The unit features a PoE Max LED that blinks at 90% usage and stays solid at 95%. A PoE LED button lights per-port LEDs to indicate active power delivery.

Perfect for supplying power to up to 18 G5 Pro POE cameras!

SKU	CD-GS1026PS
Manufacturer	Cudy
Manufacturer Product Code	GS1026PS2
Download	Datasheet Download  Type Approval Exemption

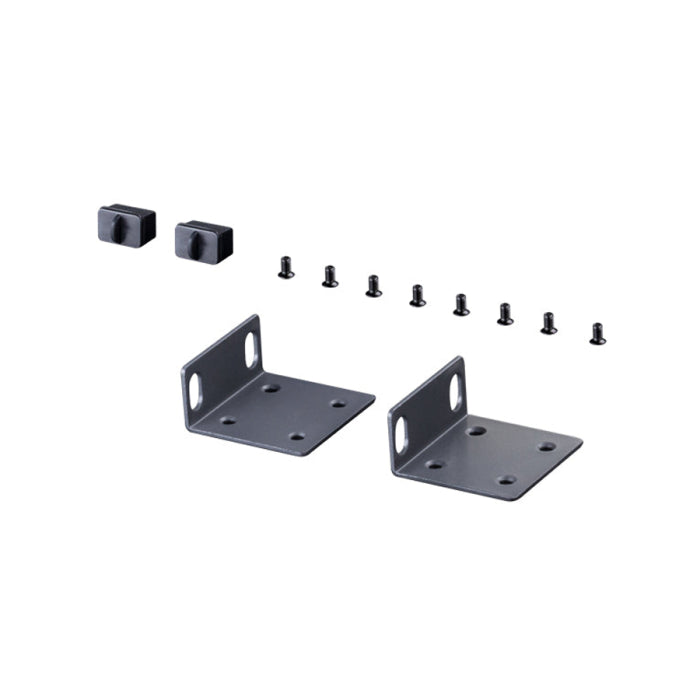

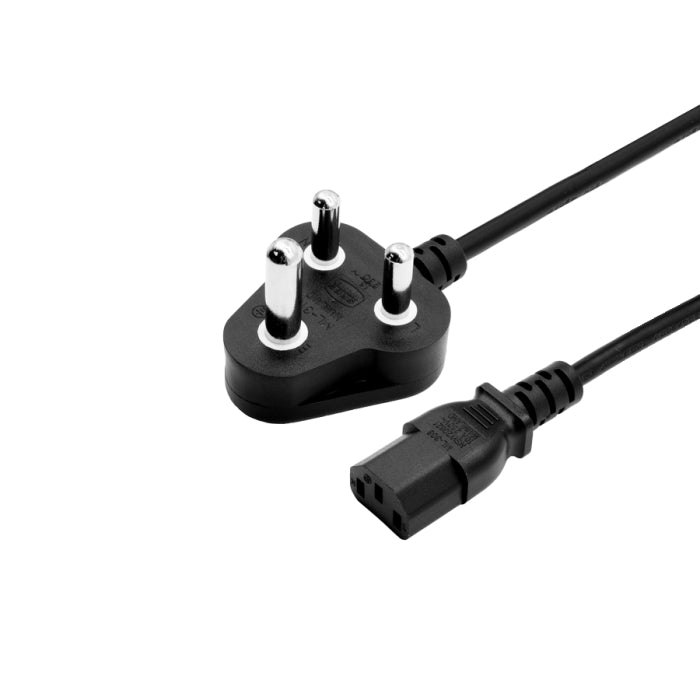

Specifications	Ethernet Ports: 26x 10/100/1000 Hardware Button: Extended; Default Max. Power Consumption: 20W Mounting: Rack-Mount Operating System: None Operating Temperature: -10~50°C PoE Input: None PoE Output: 802.3af/at PoE on Ports 1~24 Power Input: 1x IEC Power Cord (Included) Serial Interface: None SFP Ports: 2x 1.25Gbps Supported Voltage Range: 100-240V Dimensions: 320 x 207 x 44 mm Weight: 2.5kg
